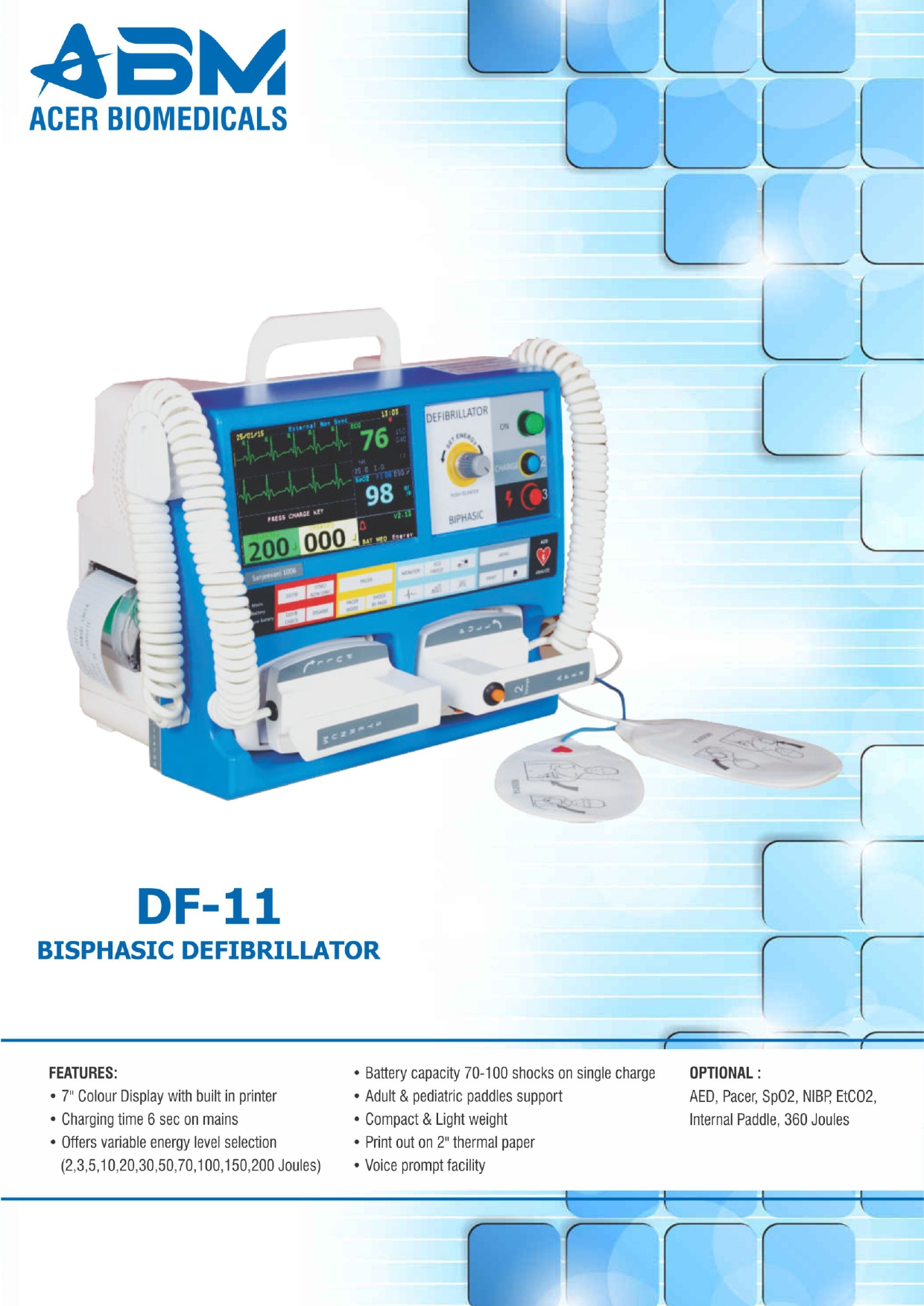

ABM Defibrillator Monitor (DF- 11 )

The ABM DF-11 is a biphasic defibrillator that can deliver 70–100 shocks on a single charge. It supports both adult and pediatric paddles and is compact and lightweight. It also offers variable energy level selection, ranging from 2–200 joules. Defibrillators are devices that use an electric charge or current to restore a normal heartbeat. They can help the heart start beating again if its rhythm stops due to cardiac arrest. Specification: OPTIONAL :AED, Pacer, Sp02, NIBP, EtC02, Internal Paddle, 360 Joules Display 7 Inch Color TFT Display Area: 150 mm x 90 mm Dimensions H 280 x W 330 x D 220 mm (Max) without Paddle Weight Approx. 6 Kgs. Max. Unit ON-OFF By front panel push bunon Operation By front panel keyboard, Encoder Alarm User adjustable high & low limit. Audible and visual alarming Trend 24 hrs. graphical and tabular trend of ECG,Sp02, NIBP,EtC02 Charge/ Discharge Charge and Shock buttons on front panel and Control paddles POWER SUPPLY Input 150-270 VAC, 50 Hz 10 Battery 12 V 4.5Ah, Rechargeable Battery capacity 3 hours for monitor and 70-100 shocks on full charge LED indicator Low battery and battery charging Power consumption 30 Watts (max) in ECG mode ENVIRONMENTAL Operating Temp 5°C to 5°C Humidity up to 95% non-condensing Defib (External Paddles) Operating Mode Manual Waveform Biphasic Truncated Exponential Energy 2 to 200 joules in 12 steps selection Energy display Displays selected and charged/delivered energy Energy delivery begins within 60 ms of the ORS Peak Charging Time 6 seconds on Mains Paddle Assembly External paddle assembly with coil retractable high voltage cable. Adults & Pediatric paddle integrated to same handle Check Mode Manual check mode Patient Impedance range 35 ohm to 250 ohm Shock Delivery Through paddles or pads Defib (Internal Paddles) (Optional) Operating Mode Manual Waveform Biphasic Truncated Exponential Energy 2 to 50 joules in 8 steps selection Synchronous Cardio Energy delivery begins within 60 ms of Version the ORS Peak Charging Time 6 seconds on Mains Paddle Assembly Internal paddle assembly with paddle extension cord ECG Frequency response 0.5 Hz to 35 Hz Patient isolation Optical isolation Lead selection Lead I, II and Ill Gain setting CMRR 0.5, 1.0 and 2.0 Sweep speed 12.5, 25.0, 50.0 mm/sec Digital filter Digital signal processing for good quality of ECG ECG traces viewing 4 seconds of ECG traces HEART RATE Range 10-250 BPM Accuracy /– 2 BPM Resolution 1 BPM Tone Beep on every ORS detected Alarm limit setting 10-250 (step of 1) PRINTER Paper Type Thermal paper 50/55mm width, 20 meters length for 2 inch printer Event Printing Prints 5 seconds pre & post ECG with Date, Time Energy and mode.Shock Status ECG in Defitl Mode Prints last 10 sec ECG through paddle Print Annotates in Time, Date, Mode, lead name, gain, sweep speedDefib Mode ECG in Monitor Prints last 10 sec ECG through cable Mode Print Annotates in Time,Date,selected lea name, Gain Sweep speed Monitor Mode Prints the status of Shock, Energy, Date and Time Mode Manual Defit> Check Sp02 (Optional) Systolic,Diastolic and Mean arterial pressure Range 0 -100�curacy:70 -100% 2digits,50 – 69% 3 digits Pulse rate Displayed in ECG window, when PR is selected Pulse beep Yes, with volume control PR range : 10 to 250 bpm ( /-2bpm) Pitch variation with change in oxygen saturation NIBP (Optional) Systolic,Diastolic and Mean arterial pressure Method Oscillometric NIBP interval User selectable – 2 min. to 25min. Modes Manual, auto Cuff deflation Automatic Safety features Automatic deflation if cuff pressure exceeds 280mmHg NIBP status display “Ready”, when not taking reading as “Measuring”, when taking reading and “Error, if reading could not be taken due to some error while measuring Patient Type Adult, Pediatric, Neonate AED Mode (Optional) PACER (Optional) Wave form Mon aphasic Modes Demand or Non Demand Pulse Current From 1 OmA to 150 mA ( resolution of 1 O mA), Pulse Duration 40 ms ( /-1ms) Pacing rate From 20 ppm to 250 ppm (increments of 1 ppm) Refractory period 340ms (from30 to80ppm);240ms(from90 to180ppm) Maximum output 150 voltage Impedance range 200 ohm to 1 k ohm EtC02 (Optional) Parameter EtC02,RR Adaptor Adult, Pediatric, Neonate Measurement Mode Mainstream & side stream EtC02 Range 0-100mmhg Accuracy !- 2 mmHg Respiration Range 0-120 bpm Features: 7-inch TFT display Offers variable energy level selection. ( 20,30,50,70,100,150,200, Joules) 24 hrs. graphical & tabular trend of ECG,Spo2 ,NIBP & ETCO2 Charge & shock buttons on the front panel & control panel Optional Parameters: AED, Pacing, ,NIBP, SPO2, ETCO2 , Internal Defibrillation Weight is approximately 6 kg. Adult & pediatric Paddles support. ECG through paddles in defi mode & print the last 10 sec. Biphasic truncated experimental waveform. The charging time is 6 seconds on mains Additional Information: One Year Warranty Weight :7kg
