2009-2024 Audi Reverse Camera Kits (3G, 3G , MIB1, MIB2 and MIB3)

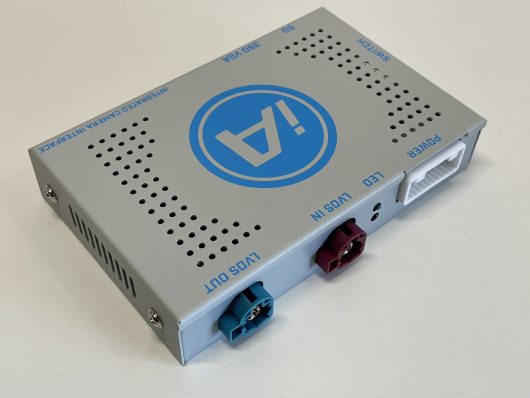

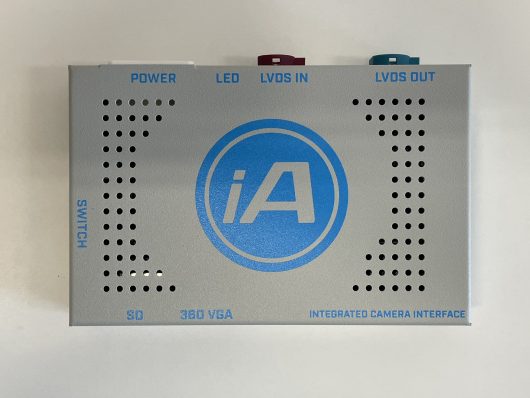

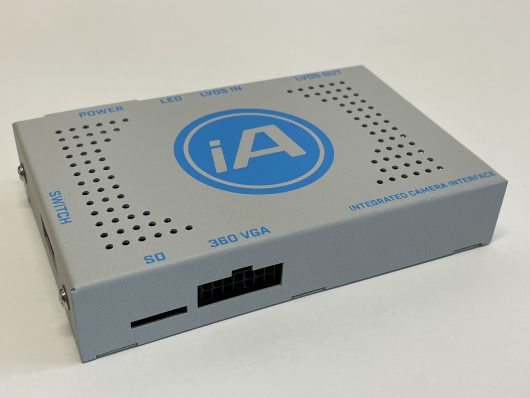

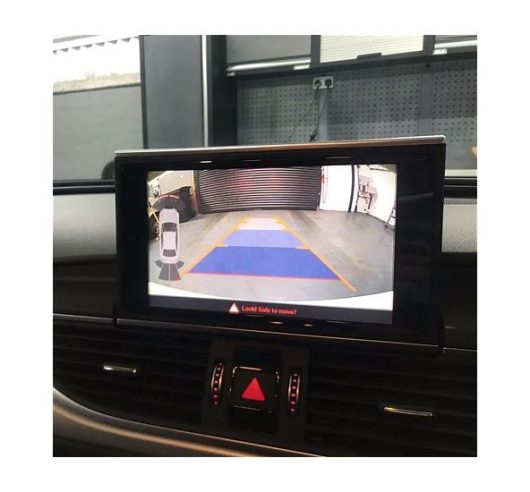

The ICI-1 is a retrofit aftermarket reverse camera interface that provides an OEM intergrated reverse camera functionality for your Audi. Covering all 3G, 3G , HNav, MIB1 MIB2 and MIB3 systems. The ICI-1 works by communicating with your existing iDrive system as well as your in-car entertainment system along with the supplied reverse camera that fits into the bootlid or number plate light (depending upon the model). It operates in either by-pass mode or in “active mode”. In by-pass mode the ICI-1 does not affect the normal operation of the in-car entertainment system, the standard Audi user interface and the standard Audi navigation system(if fitted) will be shown on the CID when in by-pass mode. Active mode is initiated when you enter reverse gear, which activates the ICI-1 and the display will switch over to the reverse camera interface and show both the image of the camera on screen as well as the parking sensor graphics if your vehicle has them fitted. You will also still hear the Audi parking beeps for audible feedback. COMPATIBILITY 3G/3G Module Compatibility: 2010-2019 Audi A1/Q3 with 3G MMI 2010-2012 Audi A6/Q7 with 3G MMI 2013-2016 Audi A6/A7/Q7/A8 with 3GMMI 2009-2016 Audi A4/A5/Q5 with 3G MMI VW Tourag with RNS850 Audi MIB1/MIB2 Module Compatibility: 2012-2019 Audi A3 including MSTD/MST2/MHI2/MIB/MIB2 MMI 2017-2018 Q7/A4/A5 including MHI2/MIB/MIB2 MMI 2018 onwards Audi A4/Q5 including MIB/MIB2 MMI 2016-2018 Audi A6/A7 including MIB/MIB2 MMI 2016-2022 Audi Q2 including MIB/MIB2 MMI 2017-2021 VW Tiguan including MIB/MIB2 MMI 2018 onwards Porsche PCM4.0 MIB3 Compatibility: 2020 onwards Audi A4 with MIB3 MMI 2021 onwards Audi A5 with MIB3 MMI 2021 onwards Audi A3 with MIB3 MMI 2021 onwards Audi Q5 2023 onwards Audi Q3   Select your Camera Audi A3 8V, A4 B8, A5 8T, A6/A7 C6, A6/A7 C7, Q3 8U, Q5 8R, Q7 4L, Q7 4M Dimensions 112mm x 50mm, NTSC Audi A3 MK2 Facelift 8P, A4 B6/B7/B8, A6 C6 4F, A8 MK2, Q7 MK1 Dimensions 109mm x 29mm, NTSC Audi A5 Mk2 F5 2016-on, Q2 2016-0n, Q5 MK2 2017-on Dimensions 111mm x 43mm, NTSC Audi 11 8X 2010-2018, Skoda Fabia Mk2 5J Dimensions : 92mm x 35mm, Mounting bolts 50mm apart, NTSC Audi A3 8V Facelift (2016-2019), Audi A4 B9 (2016-2019), Audi A6 C8 (2016-2019) Dimensions 110mm x 50mm, NTSC Features High speed microcomputer focusing on providing an OEM experience   Comatible with NTSC cameras Dynamic Guidelines supported on most vehicles Forward camera is only compaitble with automatic vehicles)
